6.10. MCPTT 3GPP/LTE RADIO RECORDING

License Required

This feature must be licensed to be used. Contact your Eventide Communications Dealer for assistance.

The MCPTT 3GPP/LTE Radio Recording template is used to record a 3gpp standard compliant Mission Critical Push To Talk (MCPTT) radio system such as Ericson or Samsung’s MCPTT solutions.

6.10.1. Recorder Configuration

In order to configure this template you must first enter the Softil configuration details under System -> Configuration Files -> Softil MCPTT Configuration before applying this template. These files should be configured to match the specific parameters of the MCPTT system you are attempting to connect with.

To select the template, go to Recording -> Recording Interfaces, click “Add Virtual Recording Interface”, and select the “MCPTT 3GPP/LTE RADIO RECORDING” template from the drop down menu and add the number of channels equal to the max simultaneous calls you want to record.

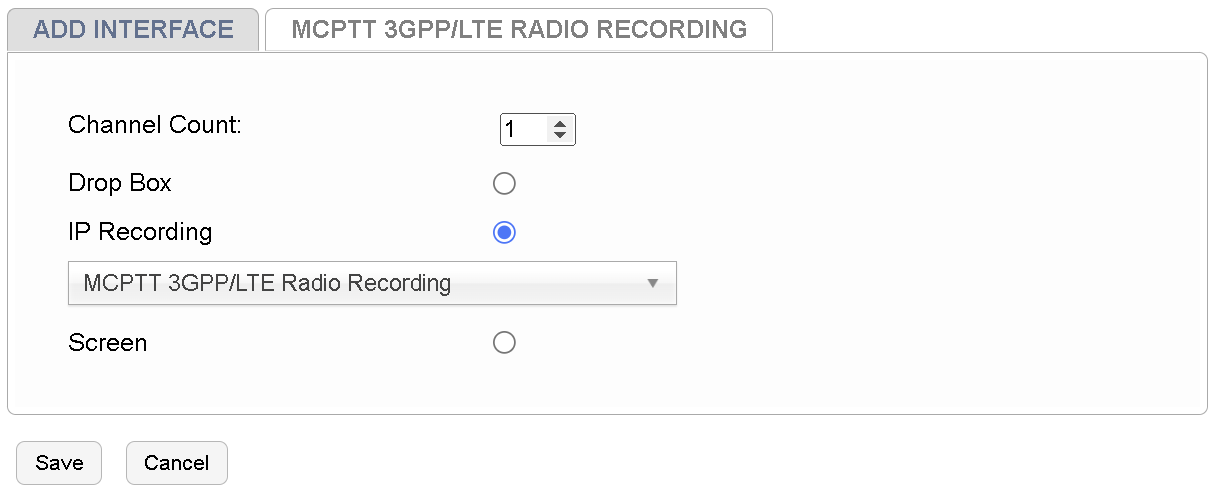

Fig. 6.81 MCPTT Template

On the following page, enter the supplied MCPTT password and Port information and select “Save”.

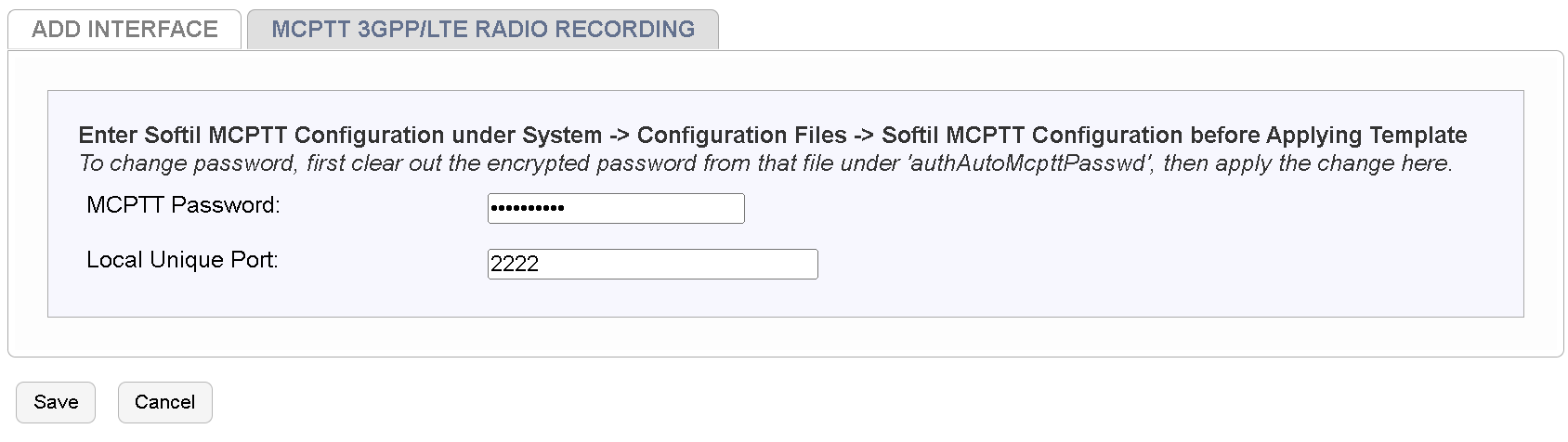

Fig. 6.82 MCPTT Template Details

6.10.1.1. Verifying Recording

You should now be able to make calls to confirm that recordings are taking place between your MCPTT radio solution and Eventide NexLog DX-Series.

Recordings can be viewed by logging into the MediaWorks DX playback interface.
