7.2.4. VPN Settings

NexLog DX-Series can join a Virtual Private Network (VPN) to make the recorder accessible to Eventide’s Service technicians or certified dealers in the case assistance is required.

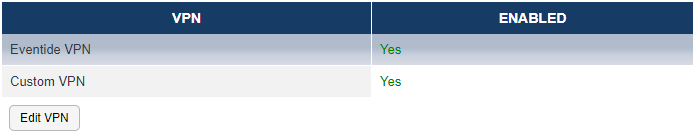

Fig. 7.21 VPN Connection List

Two VPN connections can be used simultaneously for instances where a certified Eventide dealer manages a secure remote management connection, as well a connection for Eventide’s service technicians if the dealer must escalate a service ticket for Eventide’s assistance.

Name: Name of the connection to easy identification

Host: Hostname and port of the VPN server

Example: eventidedealer.com 1194 would connect to eventidedealer.com using port 1194

Type: VPN server type. OpenVPN or IPSec IKEv2

7.2.4.1. Eventide VPN

This connection is configured when the NexLog DX-Series system is manufactured. While it can be altered or overwritten, it is not recommended. Altering this connection would prevent Eventide’s remote assistance if ever needed.

This connection should only be enabled if requested by an Eventide Service Technician, and it should be disabled when it is no longer needed.

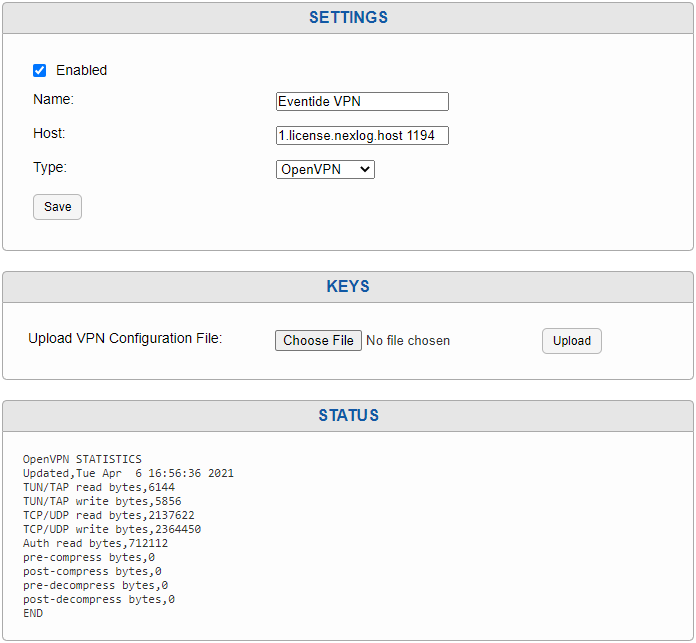

Fig. 7.22 Eventide VPN Connection

7.2.4.2. Custom VPN

This connection should be used by a certified Eventide dealer for connecting to their secured remote monitoring system.
